HDTVI AHD HDCVI Video to Fiber Converter for 720P/960P/1080P ，Non-compression，10-80KM,SC FC ST fiber connector

Name: HDTVI AHD HDCVI Video to Fiber Converter for 720P960P1080P Noncompression1080KMSC FC ST fiber connector
Brand: Ho-Link/OEM
Price: 1 USD

Wholesale HDTVI AHD HDCVI Video to Fiber Converter for 720P/960P/1080P ，Non-compression，10-80KM,SC FC ST fiber connector from china suppliers

Brand Name : Ho-Link/OEM

Model Number : HL-4V1D-20T/R-1080

Certification : CE/ROHS/FCC/SGS

Place of Origin : China

MOQ : 10pair

Price : Negotiable

Payment Terms : T/T, Western Union,Paypal

Supply Ability : 6,000pairs per month

Delivery Time : shipped within 3 working days after received your payment

Packaging Details : Packed in carton firstly,and then reinforced with wooden case for outer packing

HDCVI/TVI/AHD Interface : 4 Channels

Fiber Type : Single mode fiber

Fiber Connector : FC or ST or SC

Distance : 10km~80km (Optional)

RS485 Data : Yes

Operating Temperature : -40 °C ~ +70 °C

Contact Now

HDTVI AHD HDCVI Video to Fiber Converter for for 720P/960P/1080P PTZ Camera

Company information:

Ho-link HD-AHD/CVI/TVI Optical Transceiver adopt the advanced uncompressed HD composite video and high velocity digital optical transmission technologies which convert the AHD, HDCVI or HD-TVI composite signals to optical signals to achieve long distance(as far as 120Km) transmission through fibers.

Ho-link AHD/CVI/TVI Fiber optic transceiver can simultaneously transmit 1-8 channels AHD, HD-CVI or HD-TVI over one multimode or single-mode optical fiber. Electronic and optical adjustments are never required. LED indicators are provided for instantly monitoring system status. Devices are available for either standalone or rack-mount installation, which is suitable for different working environment. It supports input video format as 25/30/50/60fps@720P & 25/30fps@1080P.

HDTVI AHD HDCVI Video to Fiber Converter for 720P/960P/1080P ，Non-compression，10-80KM,SC FC ST fiber connector

Product Description:

4 channel CVI/TVI/AHD Video+reverse RS485 data to fiber converter
This video transmitters and receivers support 4 channels CVI/TVI/AHD video + Rs485 over one multi-mode or single-mode optical fiber. The devices are directly compatible with NTSC, PAL, and SECAM camera systems.
Plug and Play design ensures adjustment-free installation and operation. A typical installation utilizes a transmitter unit at the camera end of the link, connected via a single fiber optic cable, to a receiver unit at the monitoring end of the link. Devices are available for either stand alone or rack-mount installation with the 14-Slot Chassis.

Key features:

1. Automatically identify formats of input videos.

2. Support 1~32ch HD-CVI/TVI/AHD signal and controlling data simultaneously through coaxial cable reach to 20km.

3. With 1-CH reverse RS485 data or without data for optional.

4. DC 5V power supply.

5. Support 720p, 960p, 1080p video etc.

6. Through LED indicators to inform its functional mode.

7. Industrial wide range of operational temperature.

8. Plug and play, simple installation.

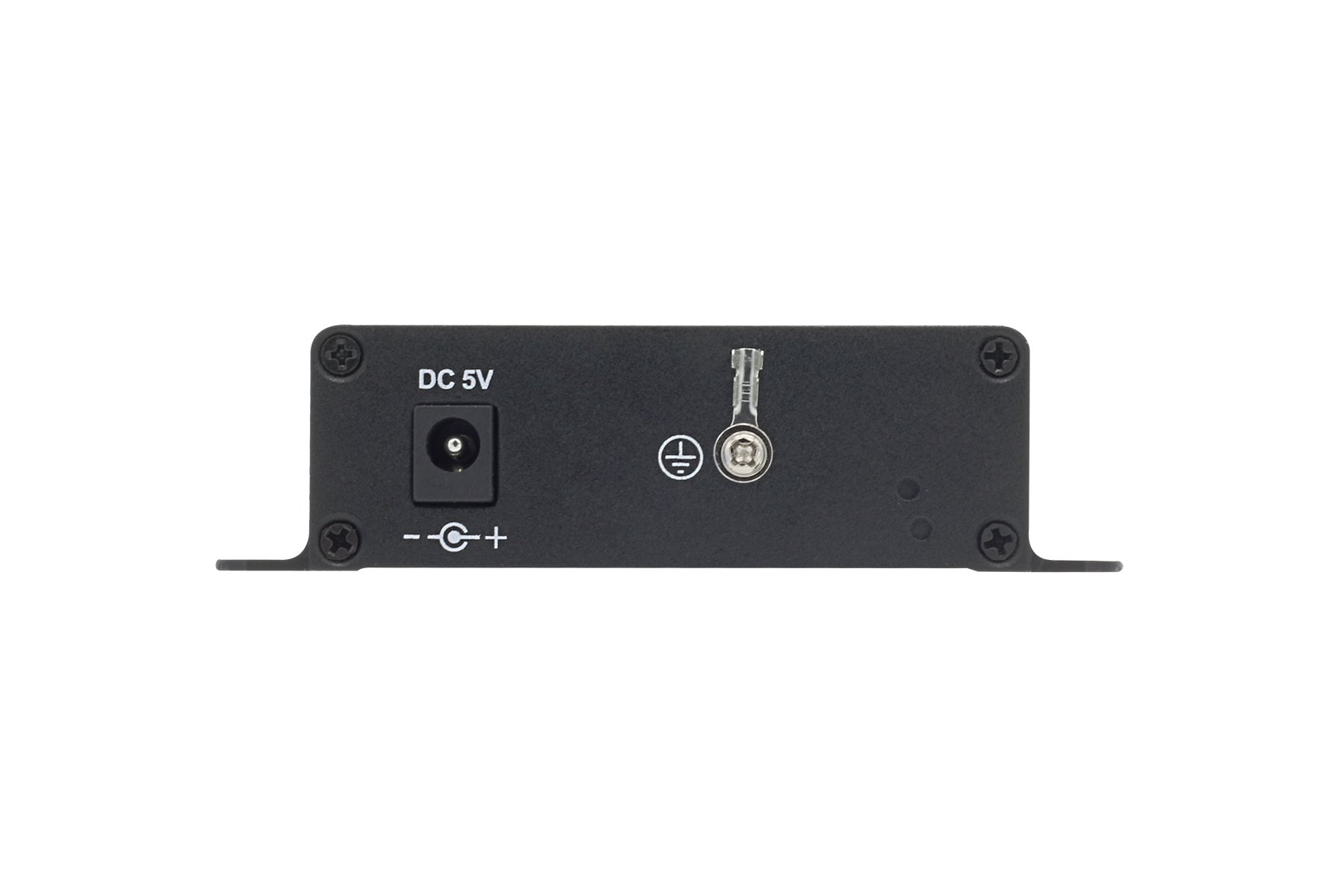

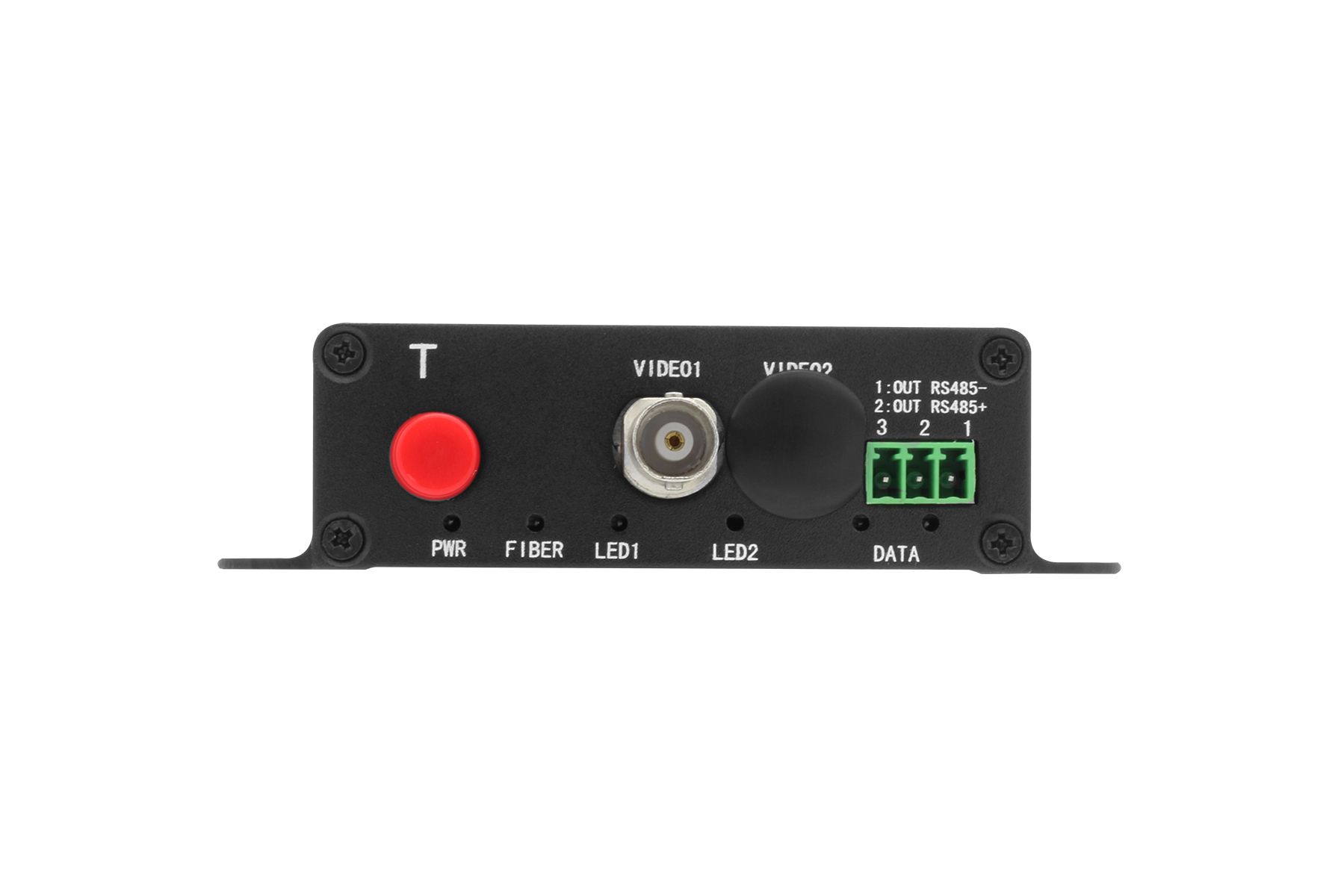

PANEL DESCRIPTIONS:

HDTVI AHD HDCVI Video to Fiber Converter for 720P/960P/1080P ，Non-compression，10-80KM,SC FC ST fiber connector

Technical Indexes:

Feature		Description
Optical	Fiber Type	Single mode fiber
	Fiber Connector	FC/SC/ST
	Distance	0km~80km
	Wavelength	Transmitter
		T1310nm, R1550nm.
		Receiver
		T1550nm,R1310nm.
HDTVI(Transmitting)	Input level	>500mVp-p
	self-adaptionly cable equilibrium	1080p:75-5
		coaxial cable,300m
		720p:75-5 coaxial cable,500m
	Input/Output Impedance	75 Ω
	Physical Interface	BNC
HDTVI(Receiving)	Output level	1Vp-p
	Input/Output Impedance	75Ω
	Physical Interface	BNC
Data	Transmission Media	Coaxial cable
	Baud Rate	1200~9600bit/s
	Bit Error Rate	≤<10 -7
	Operation Mode	Half-Duplex;Full-Duplex;RS-232
	Indicators	LOS,PWR,VIDEO
	Mean time between failures(MTBF)	>100 000 hours
General	EPS	DC5V
General	Power Consumption	≤ 5W

HDTVI TO Fiber Converter System connection diagram:

HDTVI AHD HDCVI Video to Fiber Converter for 720P/960P/1080P ，Non-compression，10-80KM,SC FC ST fiber connector

Photo display:

HDTVI AHD HDCVI Video to Fiber Converter for 720P/960P/1080P ，Non-compression，10-80KM,SC FC ST fiber connector

Shipping:

1 All of our package are international standard package

2 We will deliver our products as soon as the order confirmed
