Key features:
1. Automatically identify formats of input videos.
2. Support 1~32ch HD-CVI/TVI/AHD signal and controlling data simultaneously through coaxial cable reach to 20km.
3. With 1-CH reverse RS485 data or without data for optional.
4. DC 5V power supply.
5. Support 720p, 960p, 1080p video etc.
6. Through LED indicators to inform its functional mode.
7. Industrial wide range of operational temperature.
8. Plug and play, simple installation.
Application:
² City traffic monitoring system
² Public security, safe city monitoring system
² Highway security protection, charging system
² Building, campus monitoring net
² Industrial monitoring (airport, chemical industrial, steel, oil, railway, water conservancy, mine, etc)
² Military monitoring (storehouse, frontier defense, guard, nation defense, etc)
² electric power, oilfield, television program transmission system
² Gymnasium (live video, audio transmission)

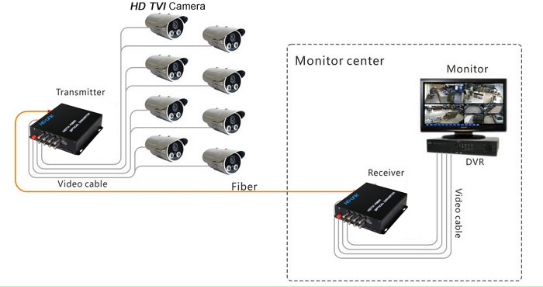

HDTVI TO Fiber Converter System connection diagram
Technical Indexes:
| Feature | Description |
| Optical | Fiber Type | Single mode fiber |
| Fiber Connector | FC/SC/ST |
| Distance | 0km~80km |
| Wavelength | Transmitter |
| T1310nm, R1550nm. |
| Receiver |
| T1550nm,R1310nm. |
| HDTVI(Transmitting) | Input level | >500mVp-p |
| self-adaptionly cable equilibrium | 1080p:75-5 |
| coaxial cable,300m |
| 720p:75-5 coaxial cable,500m |
| Input/Output Impedance | 75 Ω |
| Physical Interface | BNC |
| HDTVI(Receiving) | Output level | 1Vp-p |
| Input/Output Impedance | 75Ω |
| Physical Interface | BNC |
| Data | Transmission Media | Coaxial cable |
| Baud Rate | 1200~9600bit/s |
| Bit Error Rate | ≤<10 -7 |
| Operation Mode | Half-Duplex;Full-Duplex;RS-232 |
| Indicators | LOS,PWR,VIDEO |
| Mean time between failures(MTBF) | >100 000 hours |
| General | EPS | DC5V |
| Power Consumption | ≤ 5W |
